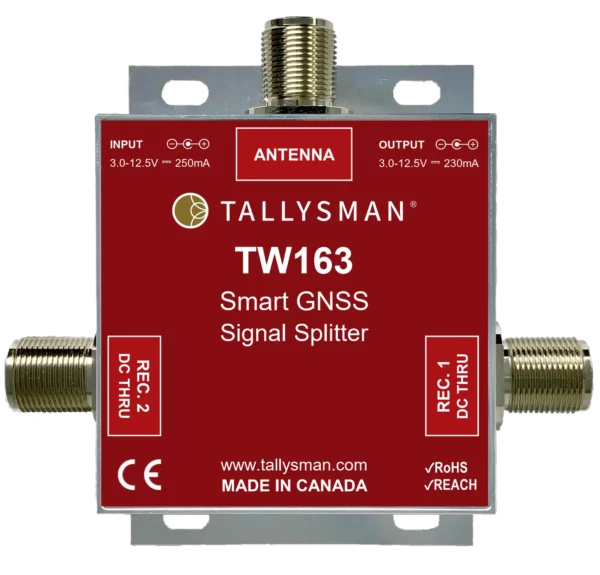

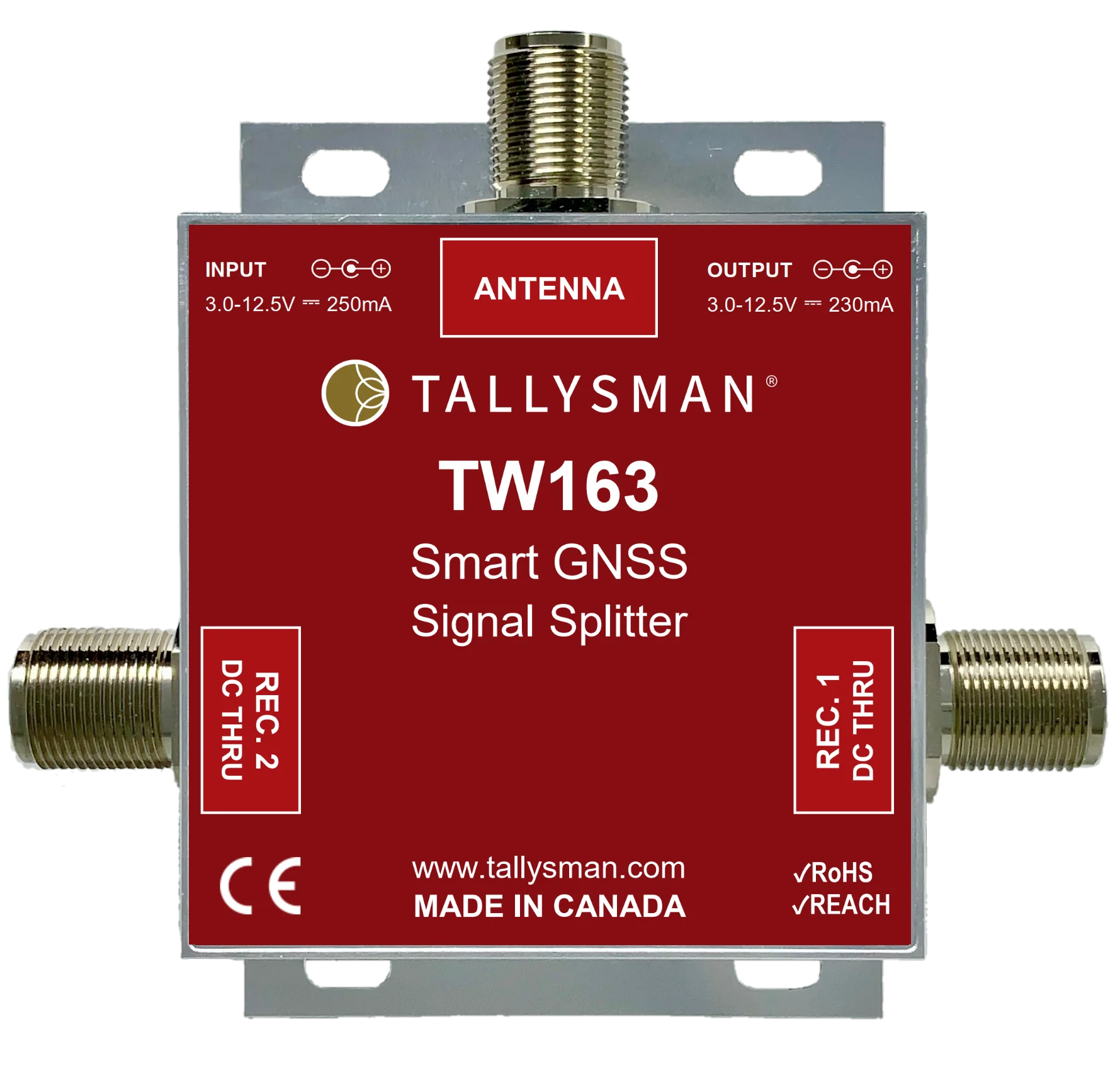

The Tallysman TW163 Smart Power GNSS Splitter is a professional-grade solution designed for high-availability GNSS applications in safety, security, timing, and infrastructure systems. Traditional GNSS splitters relied on a single powered receiver, creating a single point of failure that could interrupt service if the receiver failed or was disconnected.

The TW163 overcomes this limitation with a Smart Power design that accepts power from all attached receivers. Port #1 is prioritized if its voltage is within the specified range, and the splitter automatically switches to the next available port if necessary, ensuring deterministic, uninterrupted operation. In the event of an antenna failure, the device limits current draw to less than 2 mA, signaling a fault while maintaining operation for other connected receivers.

Delivering best-in-class performance in noise figure, isolation, and linearity, the TW163 is housed in a rugged, corrosion-protected military-grade aluminum (6061-T6) enclosure. It is compact, lightweight, and IP67-rated for water ingress protection. Connector options include TNC or type-N, and the splitter provides 10 dB gain to compensate for signal-splitting loss, ensuring reliable signal distribution for multiple receivers in demanding environments.
