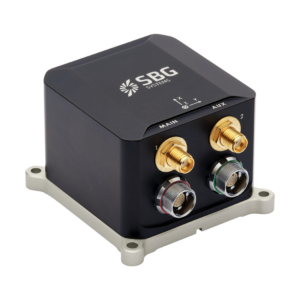

Ekinox Micro GNSS INS
Ekinox Micro combines a high-performance MEMS inertial sensor with quad-constellation, multi-frequency dual-antenna GNSS receiver to provide unmatched accuracy even in the most challenging applications. The tactical grade IMU helps to minimize errors during challenging or denied GNSS conditions, while low sensor noise ensures outstanding orientation performance.
Ekinox Micro GNSS INS
High Performance for a Cost-effective Solution:
- 1 cm RTK GNSS Position @ 200 Hz
- 0.015° RTK Roll/Pitch
- 0.05° RTK Heading
- 5 cm Real-time Heave
- 48h Internal Data Logger
- IP68 Enclosure, Compliant MIL-STD
Up to 4 Simultaneously Connected Equipment:
- Navigation: RTK GPS/GNSS corrections, SBL, USBL
- Heading: Magnetometer
- Velocity: Odometer, DVL, EM Log
Internal Dual Antenna GPS for a More Robust Heading
Ekinox Micro is a survey-grade INS/GNSS solution. It embeds a Dual L1/L2 GPS + GLONASS + GALILEO + Beidou receiver to provide robust and accurate true heading. For further performance, it can be connected to up to 4 external aiding equipment.
