This product is now end of life (EOL). Please click here to see the current alternatives.

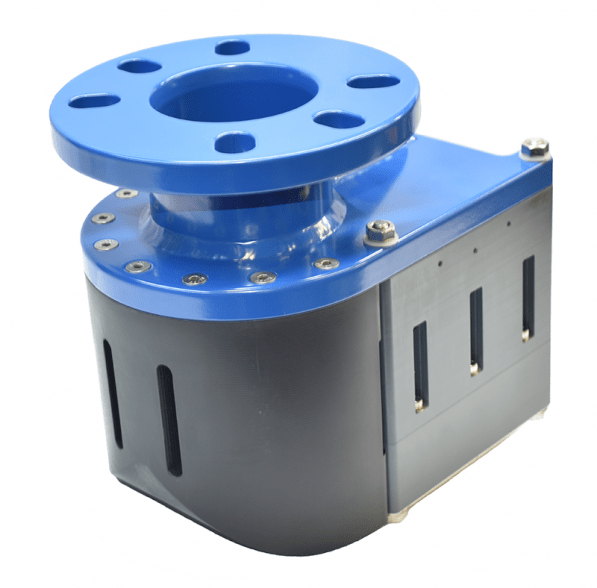

SONIC 2020

The Sonic 2020 is the low-cost entry level broadband multibeam echosounder for shallow water ways you’ve been looking for! This highly portable, easy to use unit makes survey operations efficient and fast! Ideal for river systems, riparian, estuaries, reservoirs, and lakes.

High-Resolution Multibeam Imaging

Deliver crystal-clear seabed and structure mapping with advanced multibeam technology for hydrographic surveys.

Adaptive Beam Control

Fine-tune beamwidths in real time to optimize coverage, resolution, and efficiency across survey conditions.

Compact and Rugged Design

Built to withstand the harshest marine environments while remaining lightweight and easy to deploy.

SONIC 2020

Request Quotation

Description

The Sonic 2020 can be upgraded to Ultra High Resolution – providing extremely narrow beam widths at 700kHz operation. The narrow beam widths at 700 kHz make this option invaluable for detail offshore site surveys such as pipeline inspections, cable laying operations, archeological wreck surveys or other micro bathymetry applications. When UHR™ is selected, the beam width is 0.3° x 0.6° (2024) , 0.6° x 0.6° (2022) and 1⁰ x 1⁰ (2020), providing unprecedented small bottom footprints.

Low-Cost	Budget entry level Multibeam Echosounder
Portable	155 x 140 x 150mm, weighs only 4 kg (in air) {preliminary specifications}
Versatile	Bathymetry with optional TruePix™ Backscatter, Raw Water Column and Forward Looking Sonar imagery.
Wideband Operation	Over 20x User Selectable Frequencies from 200 to 400kHz, selectable on the fly, in real-time during survey operations.
Acceptable Performance for Shallow Water Surveys	Focused 2° x 2° beamwidths Up to 130 Swath coverage Max Range 120m.
Ease of Operation	Embedded signal processor and Controller. Sonar user interface from Survey application software PC. Low weight, volume & power consumption (20 watts {preliminary}).
