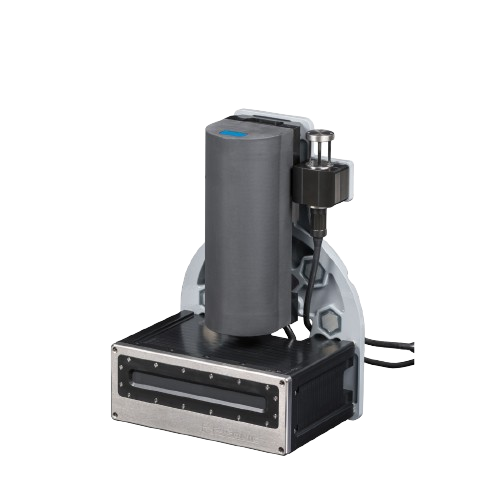

SONIC V 2022
The Sonic™-V Series is a portfolio of wideband multibeam echosounder systems featuring elegant simplicity and advanced technology. With ultra-high density mapping up to 1024 soundings per ping, compact VOX-IM connectivity, and intuitive VOX Control interface, these user-friendly systems offer remotely upgradeable technical modes and comprehensive warranty support for professional hydrographic surveying.
Sonic™-V 2022:
- Small form factor multibeam sonar for remote vehicles and small boats
- Range up to 400m+
- Extensively used in construction, ports, and dredging applications
- Excellent resolution: 0.6° x 0.6° at 700kHz

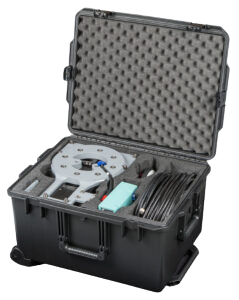

- Highly portable: receiver 60% smaller than Sonic 2024 receiver
- Competitively priced
- Beamwidth: 0.9° x 0.9°
The Sonic™-V Series represents the latest generation of wideband multibeam echosounder systems, combining elegant simplicity with cutting-edge technology to deliver exceptional performance across diverse hydrographic applications. These technologically advanced systems feature the compact VOX-IM unit with serial connectors for motion reference, GNSS time messages, and sound velocity probes, plus wide-range AC/DC voltage input capability for versatile deployment options.
At the heart of each system is the innovative VOX Control user interface, featuring a fresh, modern design that provides agile, intuitive operation. The improved logic and layout of advanced settings, combined with configurable hotkeys, language translations, and integrated help features, ensures efficient workflow management for operators of all experience levels.

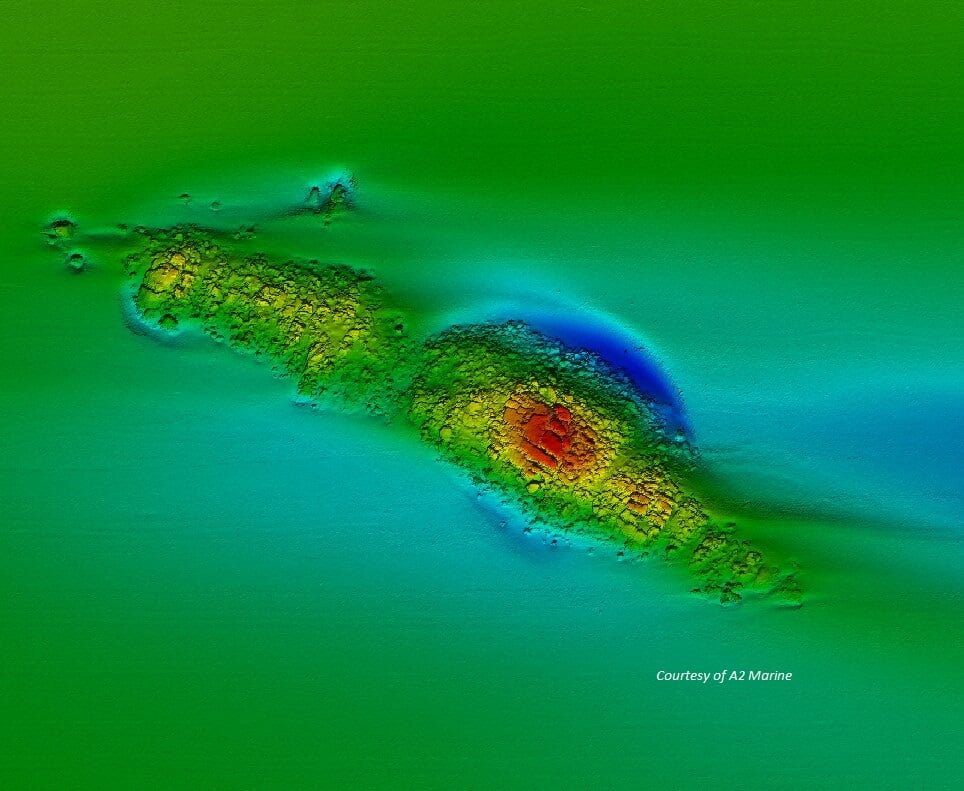

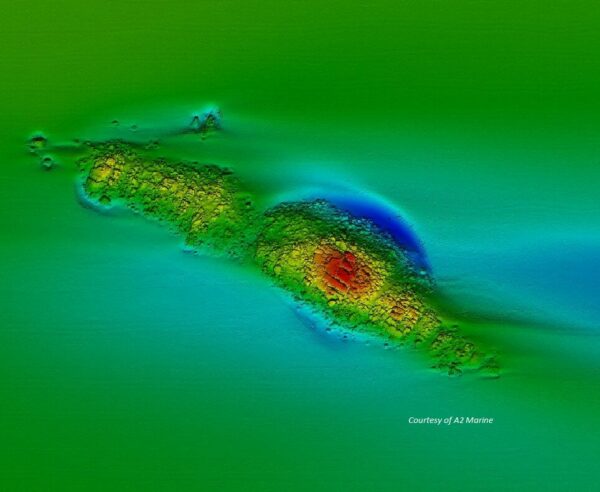

The series delivers Ultra High Density (UHD) mapping capabilities with up to 1024 true soundings per ping, significantly improving data density across the survey swath for comprehensive seabed coverage. Technical modes can be upgraded remotely at any time, including 700kHz Ultra High Resolution (UHR) available across all systems, TruePix® multispectral backscatter with compressed water column data, and switchable forward-looking sonar (FLS) functionality.
Backed by a standard 3-year warranty with optional extension to 6 years, the Sonic-V Series minimizes investment risk while providing fast, quality repairs performed by the engineering team that designed the systems. Comprehensive theoretical and hands-on personalized training delivered by expert technicians ensures optimal system utilization and operational success.
