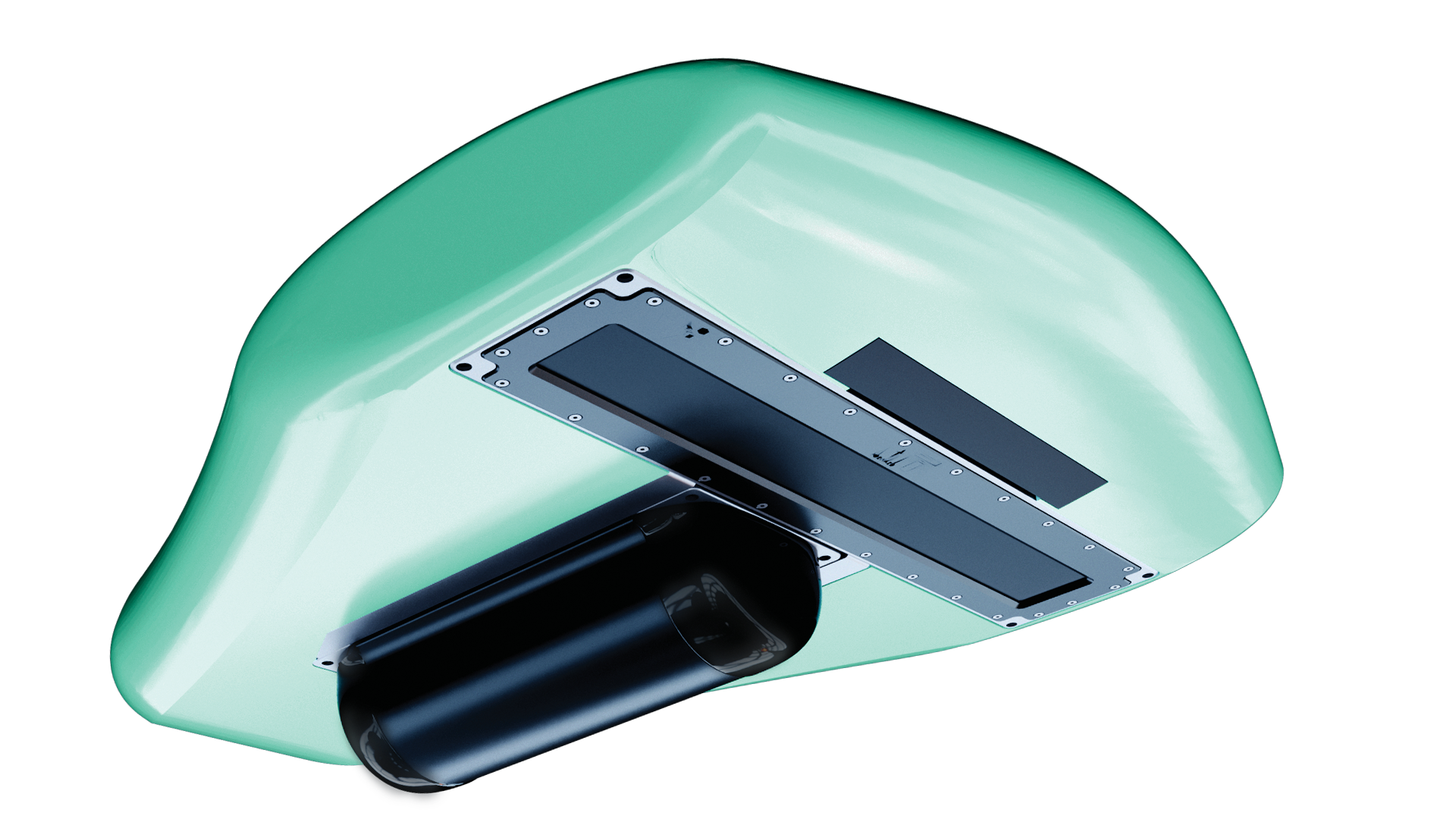

Voxometer L
The Voxometer® is a smart, automated survey system designed for underwater mapping and hydrographic surveys. Perfect for harbor surveys, marine construction projects, drilling site assessments, breakwater monitoring, and underwater biological research. Streamline your underwater surveying operations with this all-in-one professional solution.
What it's used for:
- Harbor surveys and port maintenance
- Marine construction project monitoring
- Drilling site assessments and planning
- Breakwater construction and monitoring
- Underwater biological research and habitat mapping
- Seabed mapping and bathymetric surveys
- Dredging operations and volume calculations
- Pipeline and cable route surveys
- Environmental impact assessments
- Offshore wind farm site surveys
- Archaeological underwater investigations
- Dam and reservoir inspections
| Beamwidth | 0.4° × 0.4° at 1MHz 0.9° × 0.9° at 450kHz 2° × 2° at 200kHz 4° × 4° at 100kHz |
||
| Sounding Depth | Up to 700m | ||
| Immersion Depth | 100m Standard / 6000m Option | ||
| Selectable Freq | 100kHz to 800kHz ・ 1MHz Option | ||
| Selectable Swath | 10° to 160° - User selectable in real time | ||
| Mains | 90-260V AC, 45-65Hz, or 10-55V DC | ||
| Power Consumption | 60W | ||
| Uplink/Downlink | 10/100/1000Base -T Ethernet | ||
| Sync In, Sync Out | TTL | ||
| Deck Cable Length | 15m Standard / 25m and 50m Options | ||
| Receiver Dimensions (LWD) & Mass (kg) |
456 × 102.6 × 63mm ± 7kg |
||
| Projector Dimensions (LWD) & Mass (kg) |
288 × 126 × 164mm ± 12kg |
||
| VOX-IM Interface Module Dimensions (LWD) & Mass (kg) |
212 × 160 × 70.5mm 2.9kg |
||
