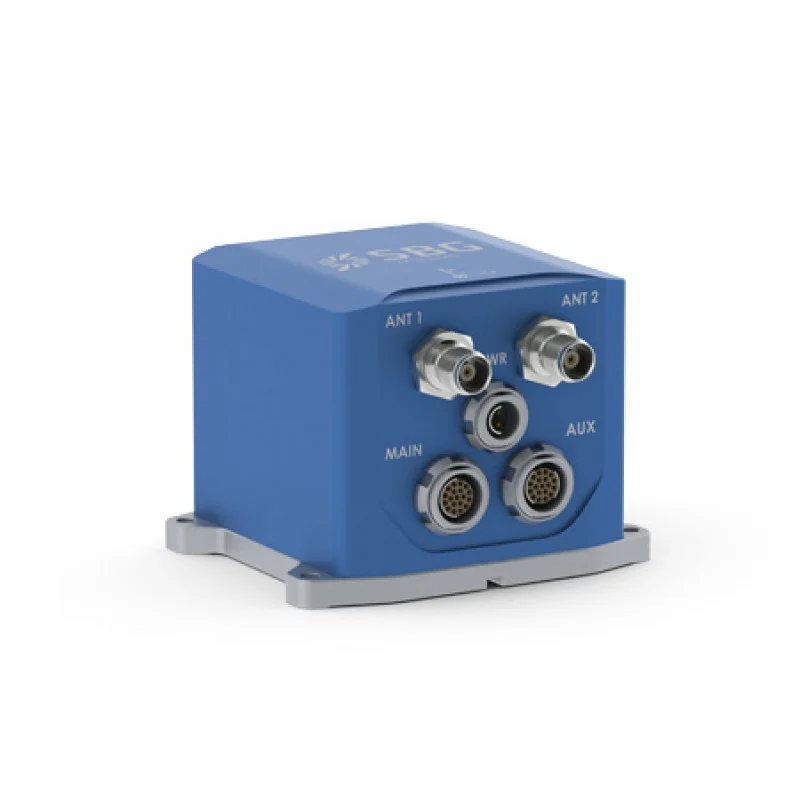

Ekinox-N: Inertial Navigation System with GPS

Ekinox-N combines an Inertial Measurement Unit (IMU), runs an enhanced on-board Extended Kalman Filter (EKF) which fuses in real-time inertial data with internal GPS information.

High performance for a cost-effective solution:

• 0.05° Attitude over 360°
• 2 cm RTK GNSS Position @ 200 Hz
• 5 cm Real-time Auto Adjusting Heave
• 2.5 cm Delayed Heave
• 48h Internal Data Logger
• Robust IP68 Aluminum Enclosure

Up to 4 simultaneously connected equipment:

• Navigation: RTK GPS/GNSS, SBL, USBL
• Heading: Dual Antenna GPS/GNSS, Magnetometer
• Velocity: Odometer, DVL, EM Log

All-in-one Inertial + GNSS Sensor
Ekinox-N is an all-in-one INS/GNSS solution. It embeds a Survey Grade GNSS receiver in a compact and affordable package. For further performance, it  connects up to 4 external aiding equipment.
