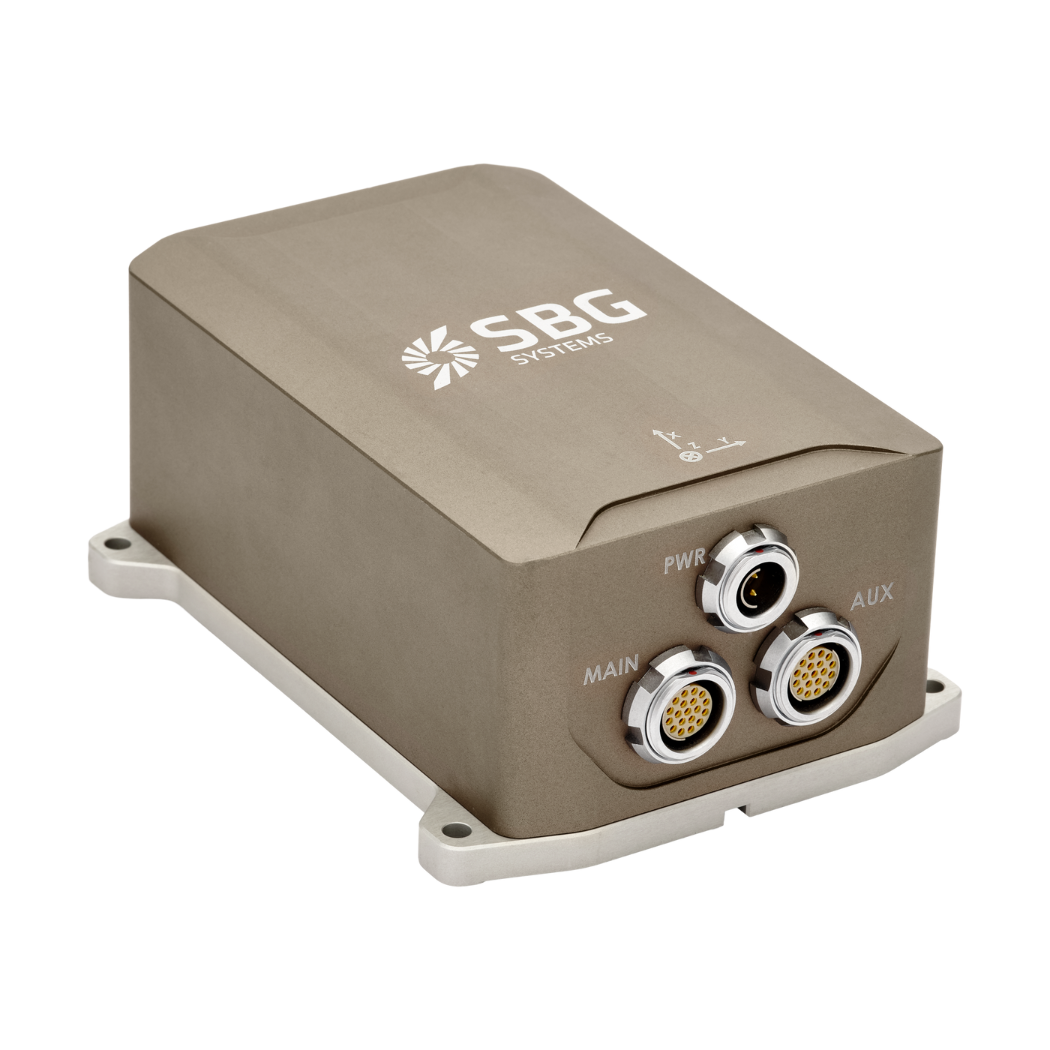

Apogee-A High Accuracy Motion Sensor

Apogee-A High Accuracy Motion Sensor

Apogee-A is part of the Apogee series of high-performance, MEMS-based inertial systems, designed to deliver precise orientation data in a compact form factor. It integrates an Inertial Measurement Unit (IMU) and utilizes proprietary Extended Kalman Filter (EKF) algorithms.



Apogee-A High Accuracy Motion Sensor

Request Quotation
Download Datasheet

High-performance orientation and heave data solution:

  • Roll/Pitch 0.01°
  • Heading  0.02°
  • 5 cm    Real-time Heave
  • 2 cm    Delayed Heave

Apogee-A embeds:

  • The latest MEMS gyroscopes and accelerometers
  • A Web Interface for Easy Configuration on any platform
  • A 48h Internal Data Logger for Post-processing

Extensive Heave Calculation

The Apogee provides a real-time heave accurate to 5 cm. For more simplicity, the user doesn’t have to enter the wave frequency; the Apogee automatically detects it and constantly adjusts to it.

Apogee comes also with a unique delayed heave feature with no additional software nor user action. This specific algorithm allows a more extensive calculation, resulting in a heave accurate to 2 cm displayed in real-time with a little delay.
The ITAR Free Apogee-A is the most accurate motion sensor based on the robust and cost-effective MEMS technology.
