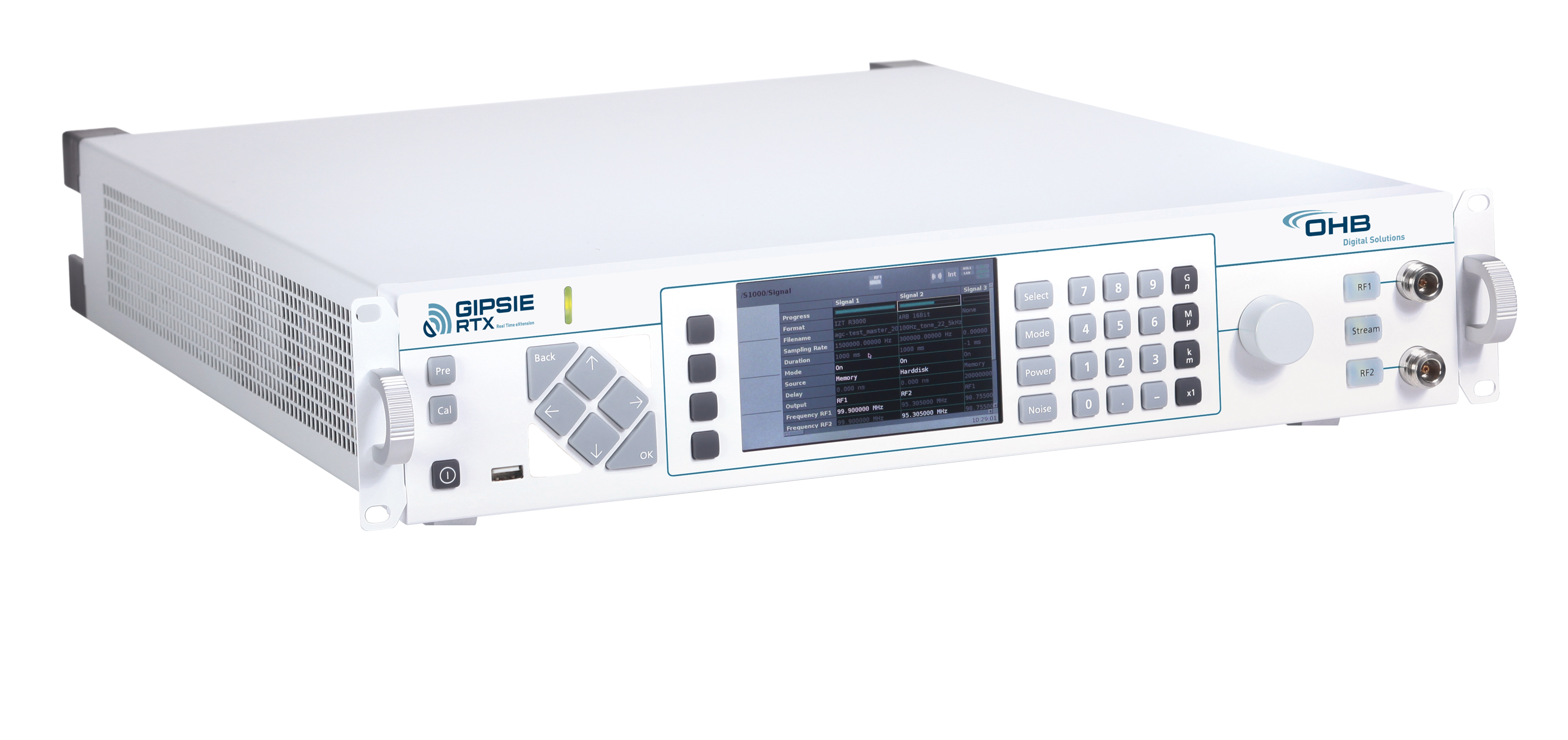

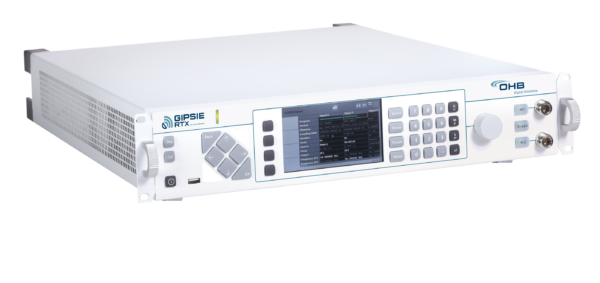

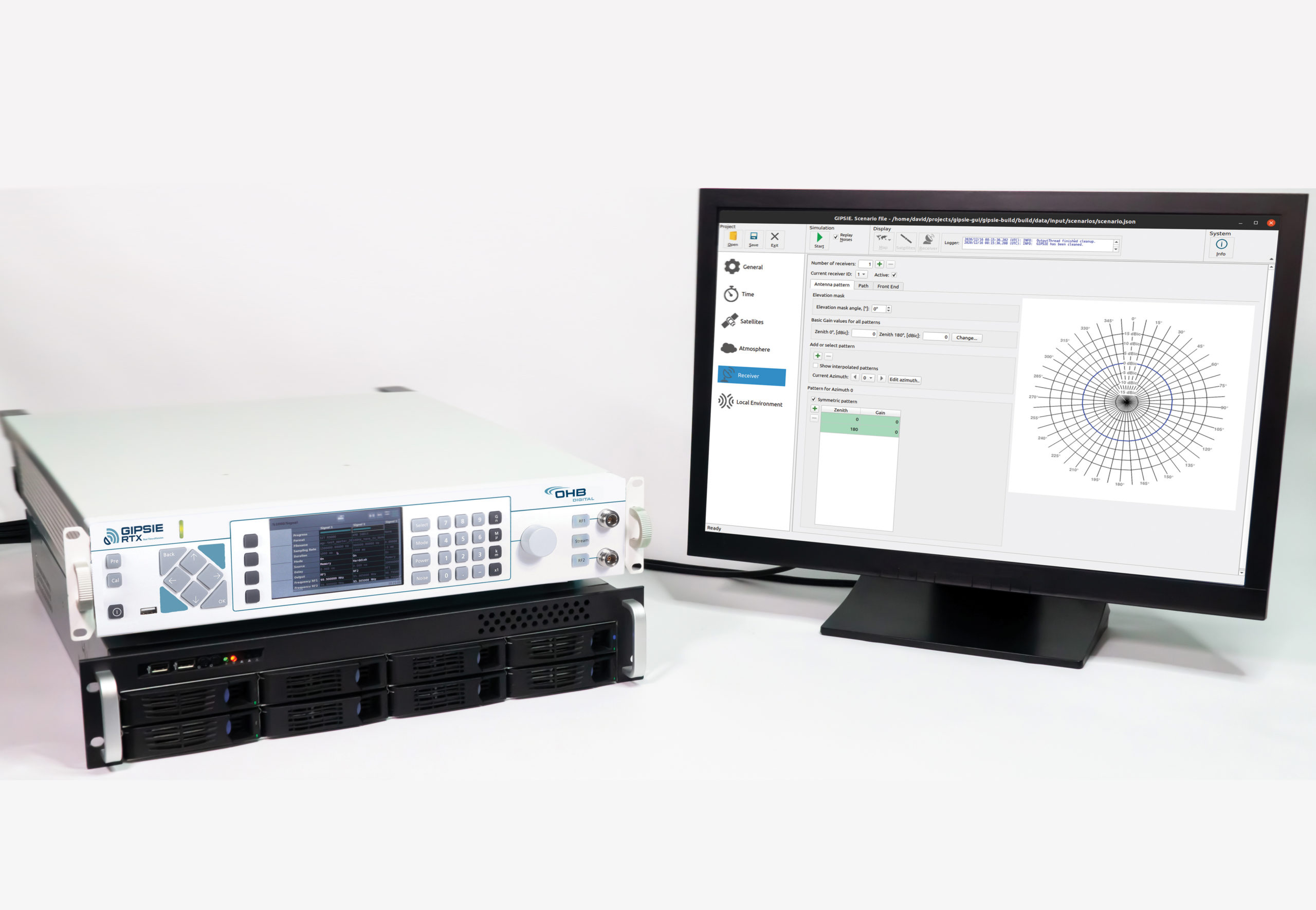

OHB Digital XPLORA PRO
XPLORA Pro offers a top-notch signal generator as a hardware platform and the versatile GNSS simulation environment, XPLORA Core. Its real-time input interface makes it ideal for Hardware-in-the-loop (HIL) scenarios, such as automotive applications.
The XPLORA Pro system is an all-in-one solution for complex and versatile GNSS testing. With multi-channel capabilities and high-performance features, it satisfies a wide range of demanding test requirements and reduces time-to-market through integrated automated sequences. The IZT GNSS firmware provides real-time signal modulation with extremely low latency, making it ideal for highly sensitive professional applications that require real-time simulation of GNSS, jamming, and spoofing signals. Additionally, XPLORA Pro is perfect for testing systems requiring HIL scenarios.
Specifications
Supported GNSS signals
- GPS: L1 C/A, L2C, L5
- Galileo: E1 B/C, E5a-I/Q, E5b-I/Q
- GLONASS: G1 C/A, G2 C/A
- BeiDou: B1, B2
- SBAS: L1 C/A
Bandwidth: up to 120 MHz per RF output
Constellation update rate: up to 250 Hz
Resolution: up to 2 x 16 bit (complex I/Q)
Operating system: Linux
Logging capabilities
- Time related parameters
- Simulated vehicle trajectory parameters
- Receiver antenna parameters
- Satellite trajectory parameters
- Satellite transmit antenna parameters
- Received signal parameters
Automotive add-on: stand-alone web service that allows route planning for road traffic
