High Performance for a Cost-effective Solution:

• Dead reckoning performance Down to 0.3 % of distance travelled** ***
• Single point horizontal position 1.2 m
• Single point vertical position 1.2 m
• RTK horizontal position 0.01 m + 1 ppm
• RTK vertical position 0.01 m + 1 ppm
• PPK horizontal position 0.01 m + 1 ppm*
• PPK vertical position 0.01 m + 1 ppm*
• Single point roll/pitch 0.03 °
• RTK roll/pitch 0.015 °
• PPK roll/pitch 0.015 °*
• Single point heading 0.08 °
• RTK heading 0.05 °
• PPK heading 0.035 °*
• Velocity 0.05 m/s

* With Qinertia PPK software** Multi-layered Jamming/Spoofing protection with automatic switch. Airdata aided with automatic wind estimation, no magnetometer needed.*** Fixed-wing UAV with airdata & visual positions aiding

GNSS performance

• GNSS receiver Dual antenna, 789 channels
• GNSS range
• 500 m/s and 80 km altitude
• Frequency band Multi-frequency
• GNSS features SBAS, RTK, PPK, RAW
• GPS signals L1C/A, L1C, L2C, L2PY, L5
• Galileo signals E1, E5a, E5b, E6BC
• Glonass signals L1C/A, L2C/A, L2P, L3OC
• Beidou signals B1I, B1C, B2a, B2I, B3I, B2b
• Others signals NaviC L5, L-Band, QZSS
• GNSS time to first fix < 35 s
• Jamming & spoofing Automatic anti-jamming & anti-spoofing, OSNMA, advanced automatic multi-sensor rejection

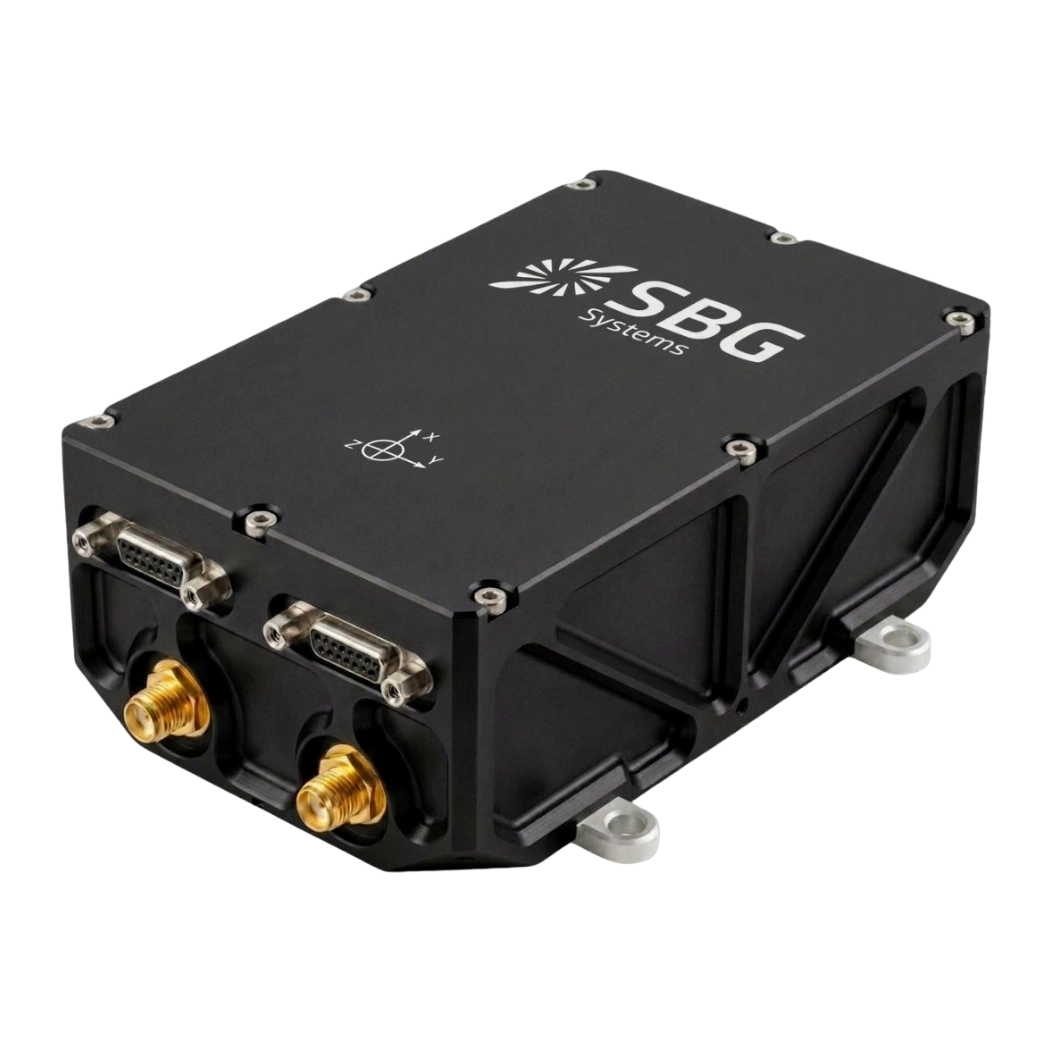

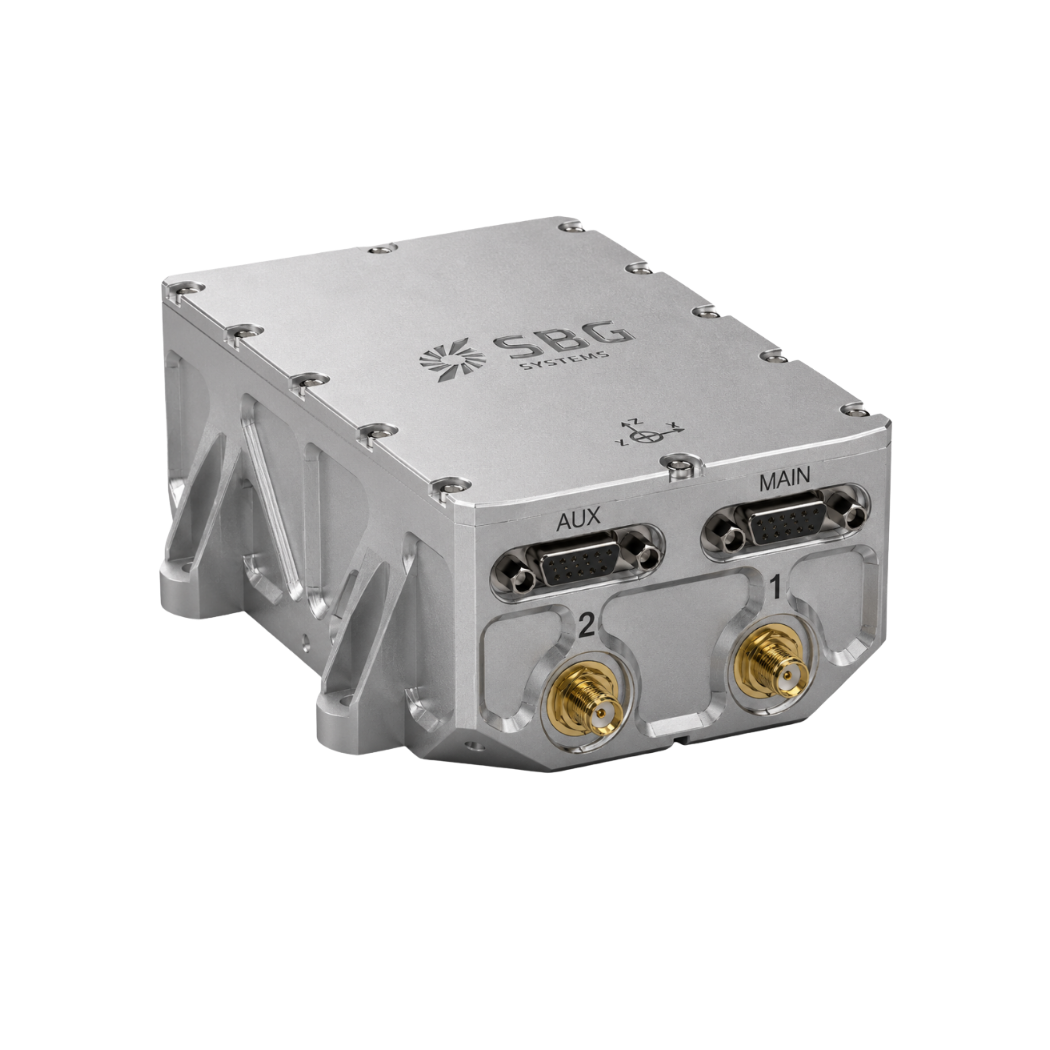

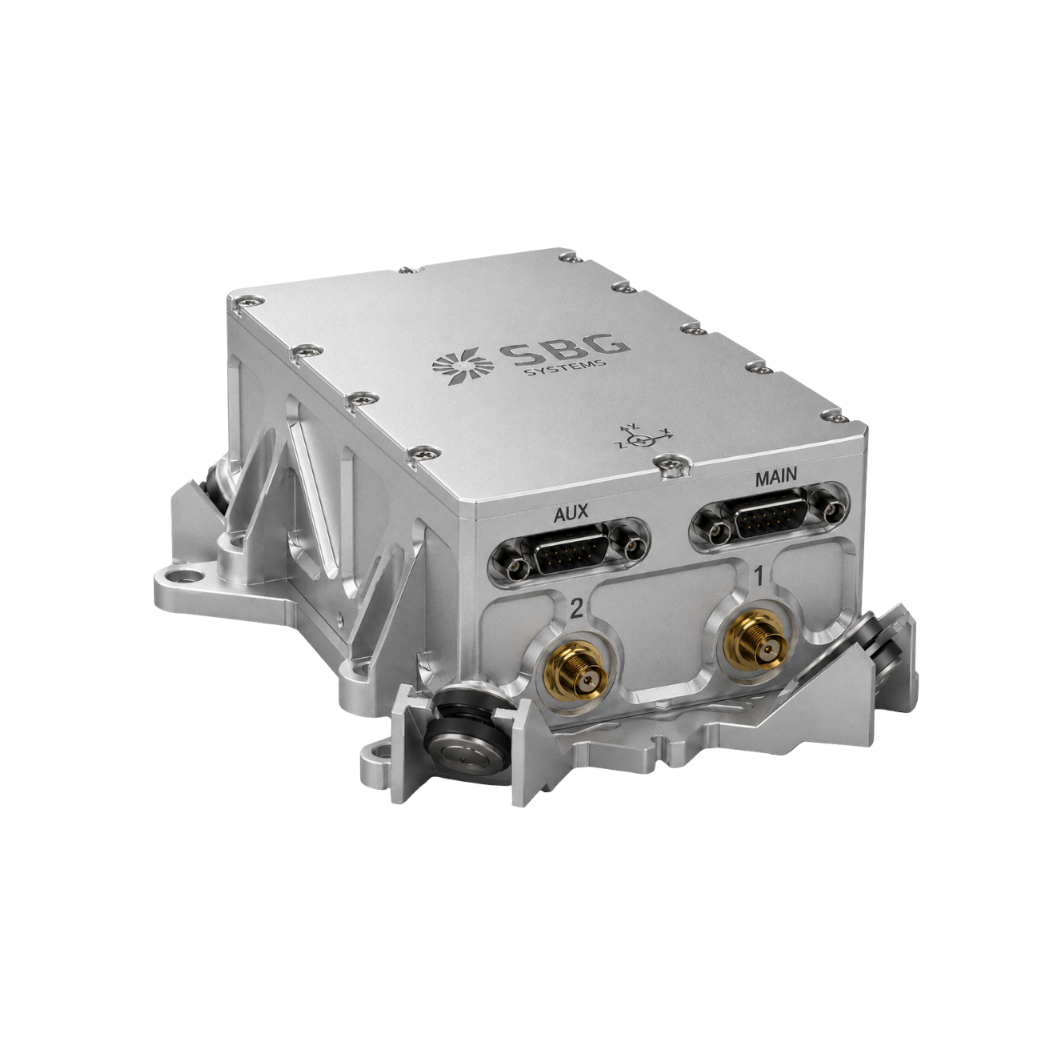

Tactical-grade inertial navigation system
Stellar-40 is the first system in the new Stellar series, developed to address evolving operational demands. This tactical-grade INS is designed with two primary goals: enhancing resilience in challenging environments and enabling scalability, all while maintaining high performance.
